Control Cards
"SI-Card 5"
material colored plastic
size 64 x 17 x 6 mm3
capacity 30+6+2 controls
Base Stations
SI-BSM3 main size 130 x 65 x 35 mm3
base station to be connected to the PC; dc-connector
SI-BSF3 main size 125 x 80 x 30 mm3
base station used at controls
Evaluation Kit SI-EK
SI-EK consists of- 1 SI-BSM2
- 1 SI-Card 5, 1 SI-Card 7
- software OLEinzelDemo: click here for information and free downloading
- software OLCodeDemo: click here for information and free downloading
You have to rename "readme.txt" to prevent unwanted overwriting!
The evaluation kit enables the training of all steps in preparation, execution and evaluation of an orienteering event using SPORTident (R) .
SI-BSM2-remarks:
- dc power supply input VDD=8...12 V, input protected against interchanging
- COM specification 4800 Baud, 8N1

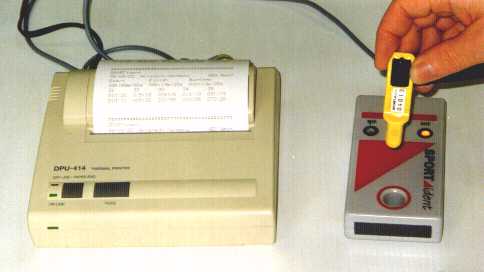

Printout Station (nextcoming)
 |
 |
| ######################################## | ||
| SPORTident | ||
| 98-09-25 | Arnstadt/Germany | AES GmbH |
| Start | Finish | Runtime |
| 03h:00m:00s | 04h:13m:20s | 01h:13m:20s |
| 31 | 32 | 33 | 34 | 35 |
| 010:20 | 015:10 | 008:25 | 018:10 | 021:15 |
| 010:20 | 025:30 | 033:55 | 052:05 | 073:20 |
